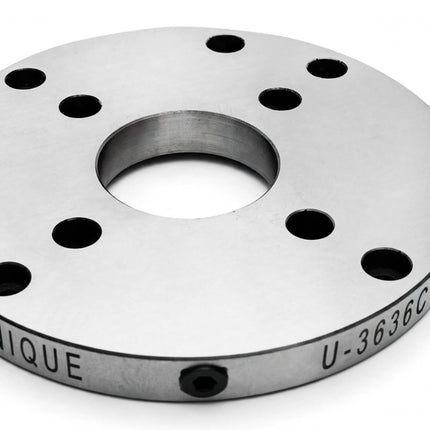

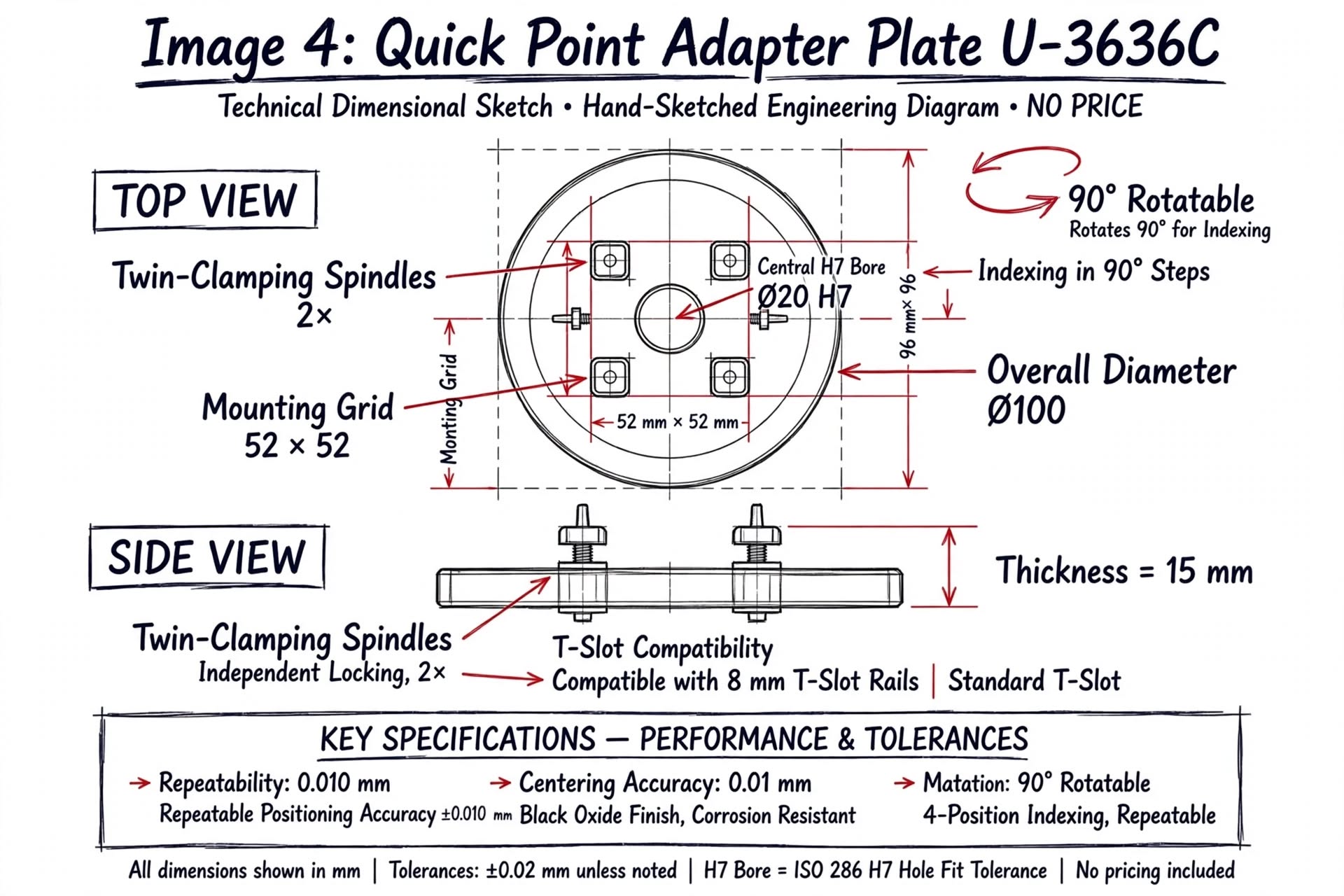

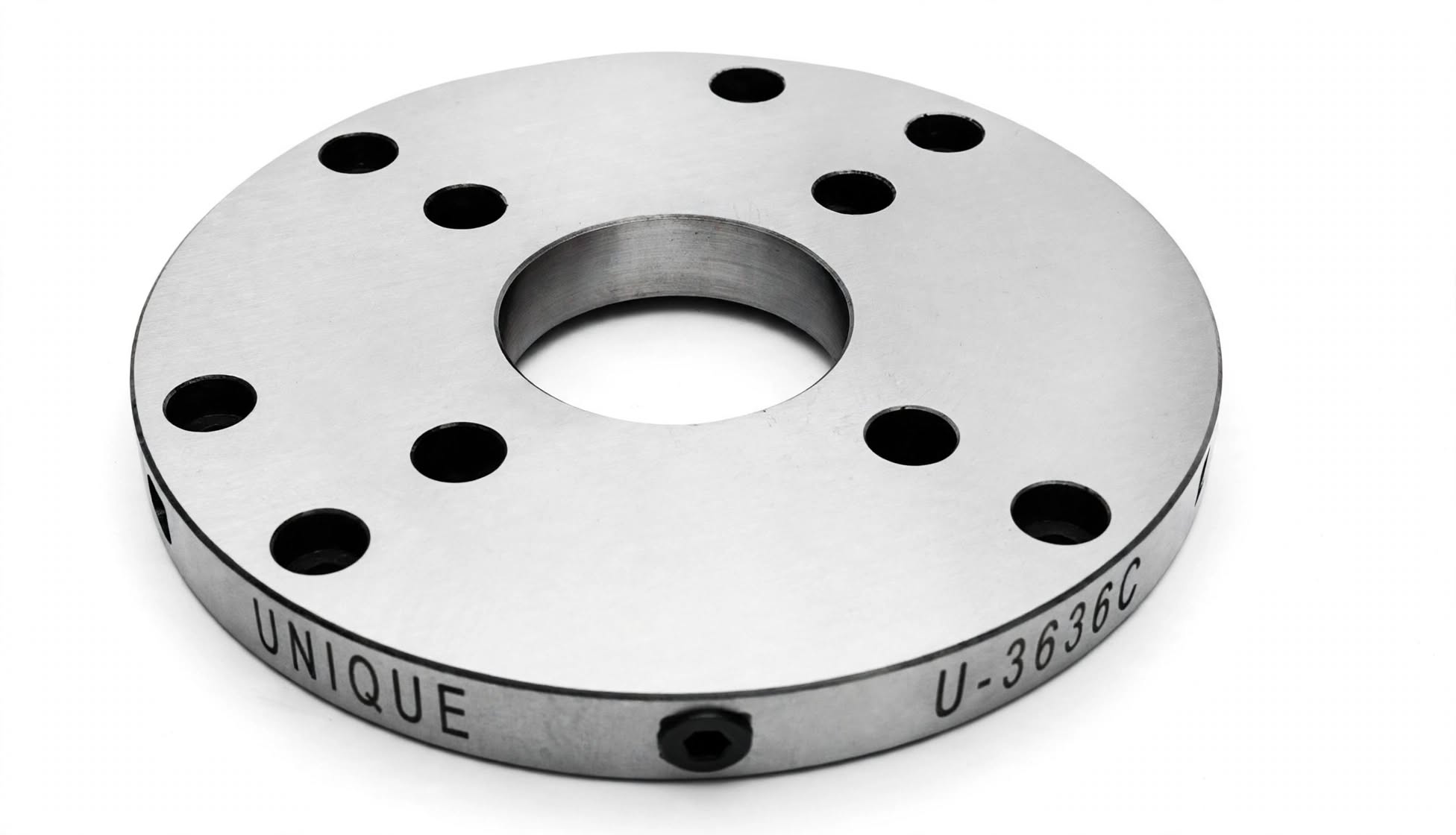

Built with alloy steel body, case hardened to HRC 60 ± 2 for the most demanding CNC environment[cite: 1]. Equipped with the new twin-clamping spindles for more holding power with all Quick Point Compatible vises (including your Self Centering Vice)[cite: 1].
This Quick Point Plate can be fixed on all 5 axis machine tables and Rotary tables because of "special" clamping design[cite: 1]. All internal parts are HRC 60+/-2 hardness, which make the whole body super wear resistant[cite: 1].
The advantage it gives is high repeatability and quick change-over times[cite: 1]. Fixtures / vises fitted to the Quick Point Plate are able to rotate 900, with a centering accuracy of 0.01 mm[cite: 1]. This makes the Quick Point Plate the ideal base for your Self Centering Vice for 5-axis machining[cite: 1].
Related Products: UNIQUE Precision Self Centering Vice (U-3131) | Height Riser Block (U3131 RB) | Unique Two-Piece Modular Vice (U3434)
FEATURES
-
HRC 60 ± 2, Hardened: High quality alloy steel body, case hardened to this Quick Point Plate HRC 60 ± 2[cite: 1].
-
Twin-Clamping Spindles: Equipped with new twin-clamping spindles to hold all Quick Point Compatible vises and Self Centering Vice[cite: 1].
-
Universal 5 Axis Mounting: Can be mounted on all 5 axis machine tables and Rotary tables thanks to the patent clamping design[cite: 1].
-
Super Wear-Resistant: All the internal parts are hardness HRC 60±2, the entire body is super wear-resistant[cite: 1].
-
High Repeat Accuracy: Advantage with which this Quick Point Plate excels[cite: 1].
-
900 Rotation: The 900 Rotation allows the workpieces mounted on fixtures / vises to be turned, with a centering of 0.01 mm[cite: 1].
-
Grid Patterns 52x52 & 96x96: 52x52 and 96x96 grid patterns (most popular) supported[cite: 1].
-
Workpiece Clamping Repeatability up to 0.010 mm: Best in class repeatability for Self Centering Vice applications[cite: 1].
-
Aligning Keys: Aligning Keys, so as to align it on the machine table[cite: 1].
-
Pre-Drilled & Tapped: Can be supplied pre-drilled and tapped mounting patterns, to allow easy attachment to most popular T-slot machine-table standards[cite: 1].
-

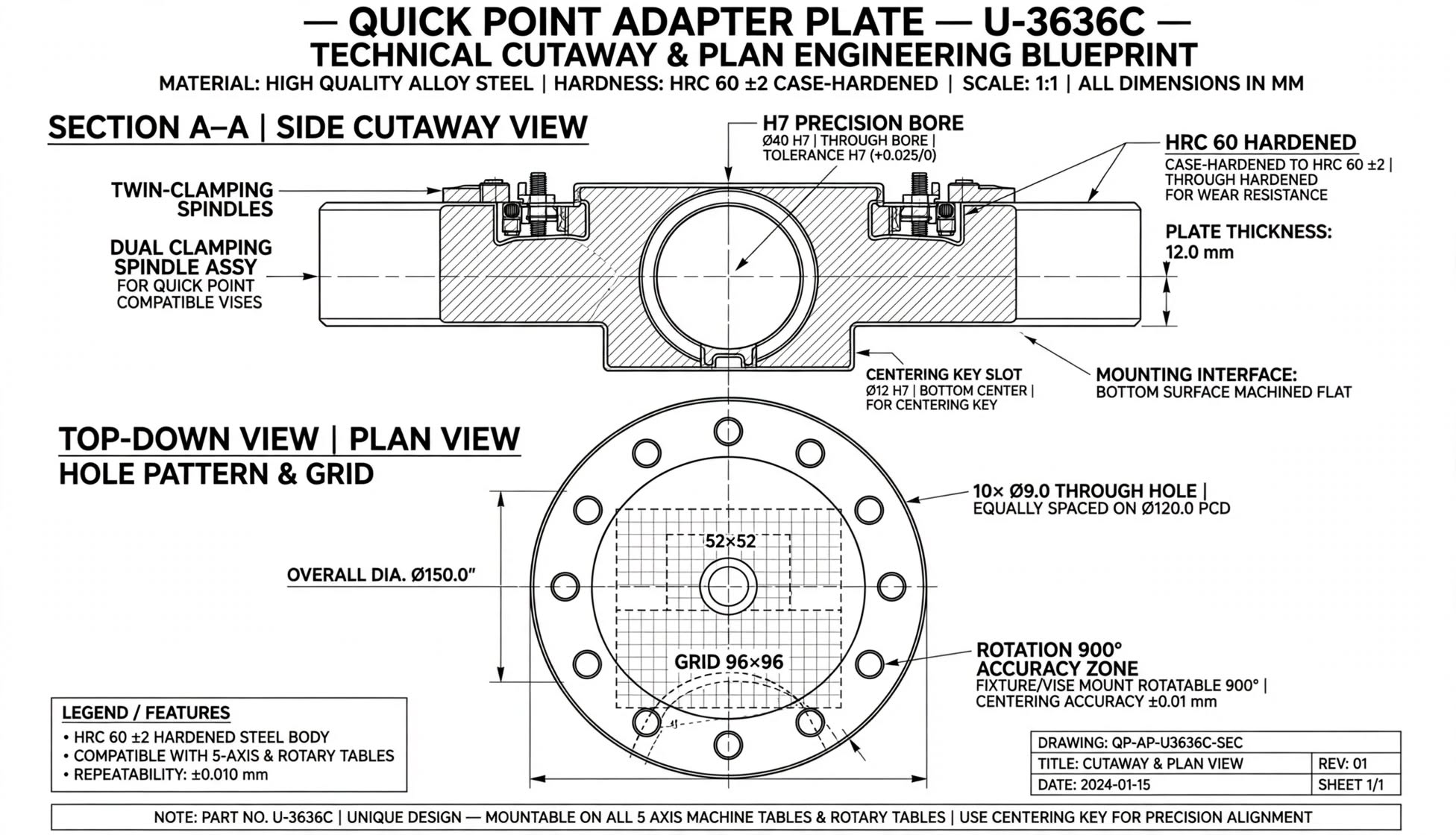

H7 Precision Centering Bore: H7 tolerance precision bore at bottom center to centrally align it on 5, 4 axis machining centers with centering key[cite: 1]. Please inform us the bore size if centering key is required to be used[cite: 1].
FAQ – WITH BUYING INTENT KEYWORDS
Q1. What is a Quick Point Plate?
A. A Quick Point Plate is a Zero Point Clamping Base Plate that enables you to mount and dismount a Self Centering Vice within a couple of seconds with 0.01mm repeat accuracy[cite: 1]. The UNIQUE U-3636C Quick Point Plate is intended for 5-axis machining[cite: 1].
Q2. Will this Quick Point Plate work with Self Centering Vice?
A. Yes[cite: 1]. For improved clamping of your Quick Point Compatible vises, we offer the twin-clamping spindles with this Quick Point Plate[cite: 1]. The plate holds Quick Point Compatible vises while the spindles are tightened in a second vises[cite: 1].
Q3. How precise is U-3636C Quick Point Plate?
A. The centered accuracy is 0.01mm and workpiece clamping repeatability up to 0.010mm[cite: 1].
Q4. What grid patterns is this plate compatible with?
A. The cassettes work with grid patterns 52x52 and 96x96, the most usual measures existing in the market[cite: 1].
Q5. Is this plate mountable on a 5axis machine table?
A. Yes[cite: 1]. This Quick Point Plate can be mounted directly to all 5 axis machine tables and rotary tables and can also be supplied pre-drilled and tapped for T-slot machine tables[cite: 1].
Q6. What is the H7 bore used for?
A. Bottom center H7 tolerance precision bore with center hole enables you to position the plate precisely with a centering key on 5 and 4 axis machining centers[cite: 1].
