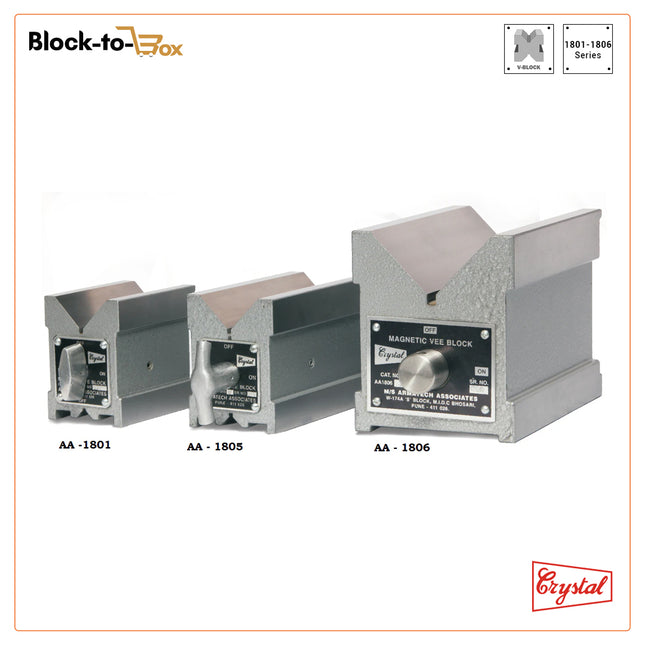

• Accuracy for Flatness, squareness & Parallelism within 0.005mm for 2″, 3″, 4”, 6” & 0.010mm for 8” ‘V’ blocks.• The main ’V’ angle & the bottom holding surface are equipped with hardened HSS Blades that ensure extra wear resistance in hardened series.• Uniform & Strong magnetic pull to all three magnetic surfaces that is top, bottom & two ’V’ grooves.• Hardness of ’V’ face 58 HRC + 2 HRC.• 60”, 108”, 120” ‘V’ angles are also available.• Easy ON-OFF facility.• Used for Grinding, Light milling, Drilling & Inspection of Round & Square jobs.• The magnetic system is shielded from penetration of moisture & cannot be damaged by coolants or other fluids.

Read more less

This Crystal Magnetic Dial Stand Base is perfect for any laboratory or research setting. It features a magnetized dial stand that allows for precise, fine adjustments with just a twist. Its dial is easy to grip and can be adjusted quickly, allowing you to measure and test with accuracy and ease. A Powerful magnetic base holds firmly to any steel or cast iron surface horizontally, vertically or up-side down. The dial stand can be locked in any desired position in 360Deg by a central locking mechanism provided on the top of the assembly  There is a clamping hole intended for Dia8mm stem and also there is a dovetail clamp for lever type dial indicator

Read more less

A powerful Permanent Magnetic Base holds firmly to any steel oriron surface—horizontally, vertically or up-side down.  This magnetic base comes with fine adjustment.  ON/OFF knob is provided for ease of operation.

Read more less

A powerful Permanent Magnetic Base holds firmly to any steel oriron surface—horizontally, vertically or up-side down.  This magnetic base comes without fine adjustment.  ON/OFF knob is provided for ease of operation.

Read more less

A Powerful Permanent Magnetic type base holds firmly to any steel or iron surface- horizontally, vertically or up- side down.  The base is energized for attachment on flat surfaces and a ‘V’ slot facilitates gripping of the stand of shafts with a diameter range of 20 to 120 mm.  Simple and quick setting is obtained by a clamping of the extension arm with a metallic clamp. Thus providing vibration free accurate inspection.

Read more less

 This Magnetic Base has fine adjustment at the base of the column & is used for where quick inspiration is required.

Read more less

This Magnetic Base can be mounted directly at the back of dial indicator.

Read more less

Universal Magnetic base with ‘V’ Block base equipped with suitable permanent magnet.  Four magnetic faces, vee groove for fixing rounds parts from 20 to 150 mm dia. Tubular steel measuring arms, ground and chromium plated can be adjusted in all planes. Horizontal arm with fine setting device.

Read more less

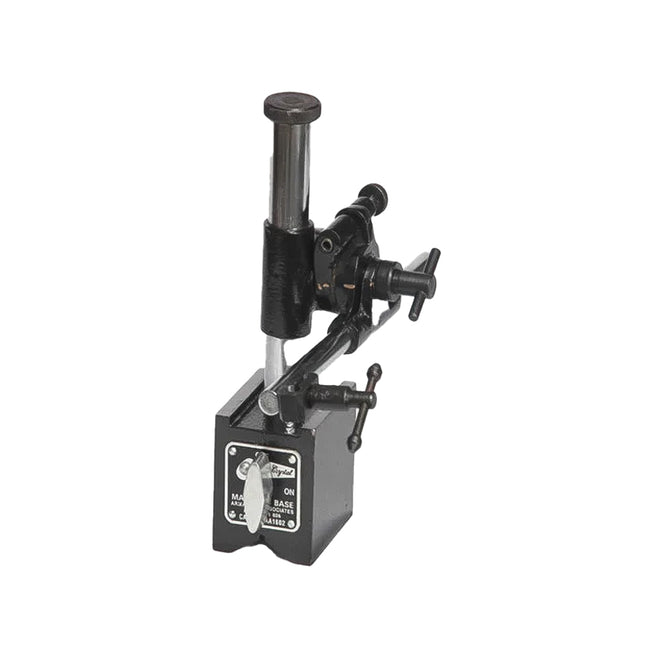

This model has as a heavy magnetic base and the rigid gunmetal fitting clamps making it suitable for use in shop floor environment.  A fine adjustment screw is provided and maximum magnetic performance gives security even on rough surface.  The base and two sides are energized by switching it ON for attachment to flat surfaces and a ‘V’ slot facilitates gripping on curved surfaces.  Universal movement of crossbar is controlled by one screw.

Read more less

 This extra heavy and ruggedly made testing stand with fine adjustment is used wherever the highest accuracy is required .  It can be used for inspecting mounted pieces on a bench centre for run out.  The surface of the H-formed base, the column and the extension arm are precision ground.  The column can be moved and clamped in any position on the base with a knurled nut.  The extension arm which can be adjusted in height, moved lengthwise and swiveled is sufficiently rigid that vibrations during the measurement even with the fullest extension, are at a minimum.

Read more less

These are very heavy and robust stands. They are used wherever optimumrigidity is demanded.  The extremely sturdy columns guarantee high-test rigidity. These standshave a novel clamping device for the projection of scriber.  Heavy duty surface Gauge has simple and rapid setting of the stand andclamps and scriber in any position even at moderate tightening.

Read more less

The base is made from case — hardened steel, ground on the bottom and at one end.  There is a depression in each side for the thumb and fingers and the groove in the base adapts it for use on cylindrical as well as flat surfaces.  There are two gauge pins frictionally held, which can be pushed down and used against the end of a surface plate on a T- slot for linear work.  The fine adjustment feature makes it possible to obtain quick and accurate settings.  The spindle which passes through rotating head or lower sleeve can be set above or below the base. The hardened and ground scriber can be set at any position on the spindle which in turn can be set at any angle.

Read more less

 Designed to hold work magnetically for inspection & layout work, Very Useful For Holding Odd shaped Parts for Grinding.  Accuracy for Flatness, Parallelism and Squarness is within 0.005mm

Read more less

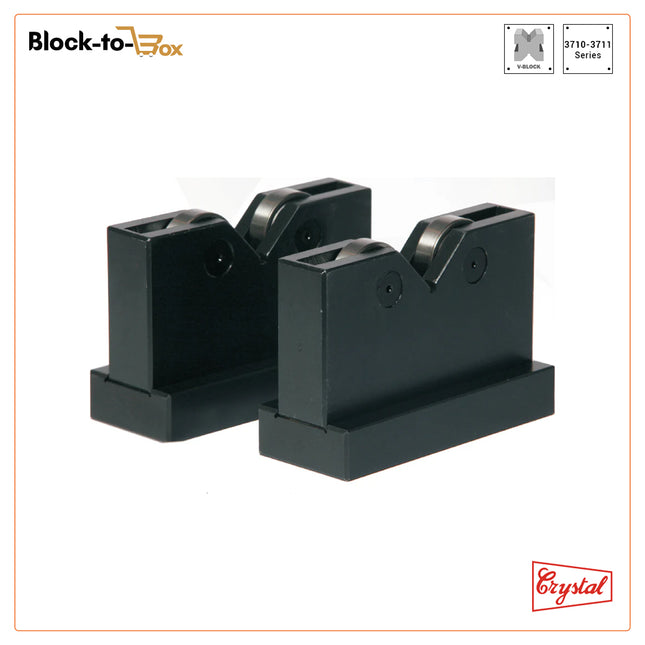

 The Roller Bearing ‘V’ Blocks are accurately assembled and are precision ground in matched pairs.  Four high precision double Z bearings are provided on the top . This facilitates in the inspection of heavy round components. Work pieces don’t get damaged due to bearings.  The base plate of roller bearing ‘V’ block is hardened to 55 HRC i 2 HRC.

Read more less

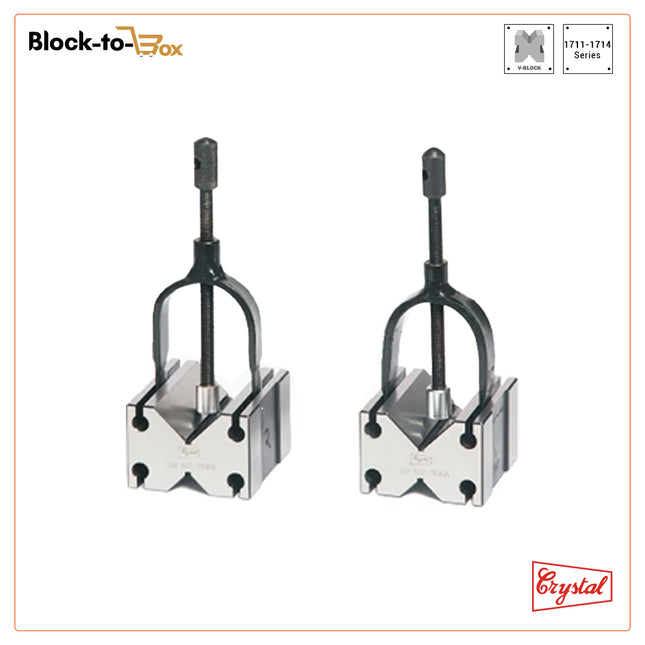

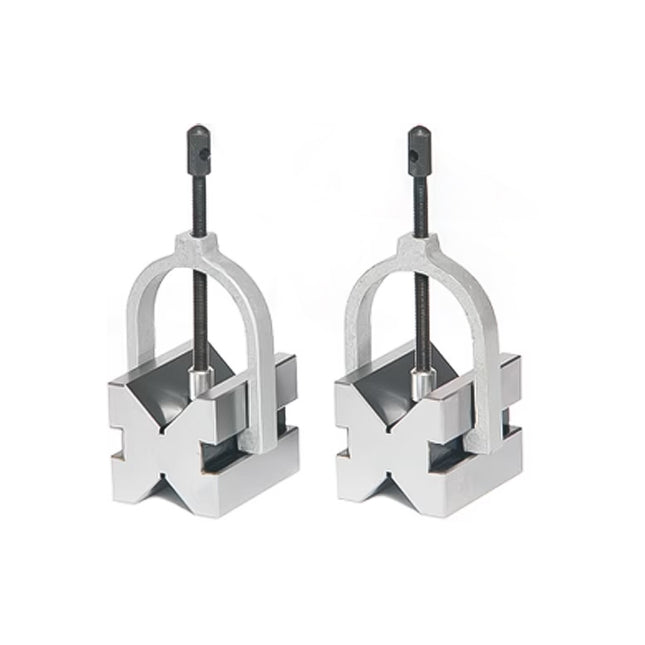

V’ Blocks are Hardened & Ground to 55 HRC + 2 HRC.  The top ’V’ and bottom ’V’ are parallel within + 3 micron and it’s squareness to the end faces and height variations to the ’V’ Block in a pair is within + 3 micron.  Supplied with Clamp for holding job.  Hold square & Round work.

Read more less

• A precision ‘V’ block hardened at 55 HRC 1 2HRC for the most accurate Tool Room Work. • V-Grooves are ground central and parallel to the sides and base there is perfect alignment in matched pairs. • Holds square or round work. Clamp has tapping holes at 45″ and 90°. • Stepped groove construction permits low or high clamp mounting for small or large work up to a 50mm & 35mm square. • Clamps do not project in the sides , permitting block to be used on base, ends or sides. • I Exclusive features gives it extra utility and versatility not found in other types of blocks.

Read more less

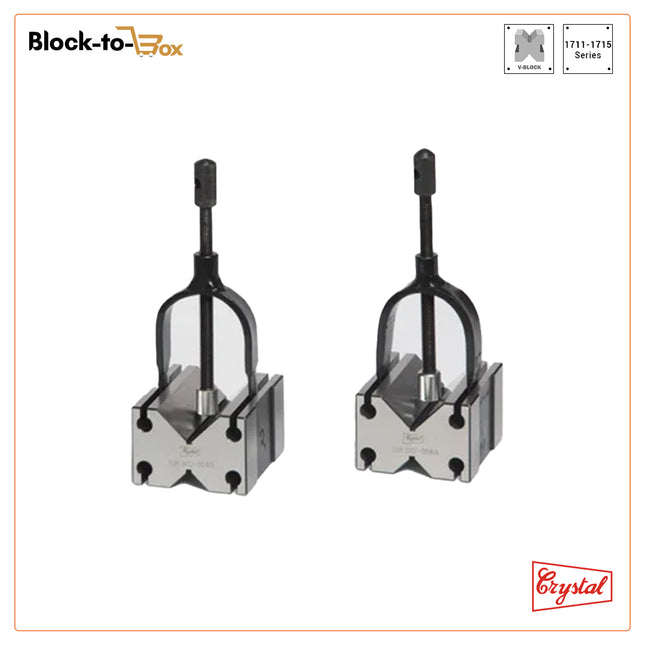

• V’ Blocks are Hardened & Ground to 55 HRC + 2 HRC. • The top ’V’ and bottom ’V’ are parallel within + 3 micron and it’s squareness to the end faces and height variations to the ’V’ Block in a pair is within + 3 micron. • Supplied with Clamp for holding job. • Hold square & Round work.

Read more less

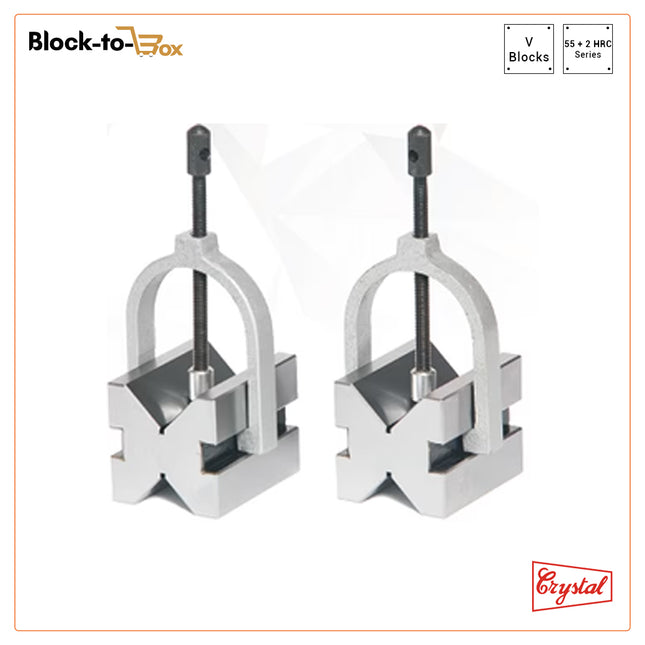

We are highly engaged in offering Hardened & Ground ''V'' Blocks to our prestigious clients. Features: Grade A- 'V' Blocks are made from high quality tool steel.  Hardened to 55 HRC ± 2 HRC and are precision ground.  Grade B- 'V' Blocks are made from closed grain cast iron.  The top 'V and bottom 'V are parallel and its squareness to the end faces and height variations in the 'V block are controlled in a  matched pair.  Supplied with clamps for holding job.  Perfect alignment in matched pairs.

Read more less

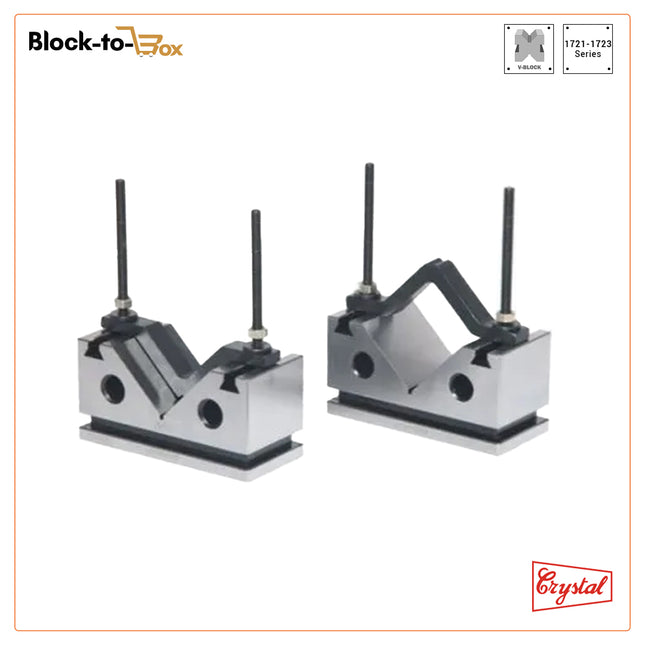

The 'V’ Block have two 'V’ angles of different sizes to take jobs of various dimention. By means of clamp the work can be held rigidly to the 'V’ Block. The top 'V’ and bottom 'V’ are parallel within ± 3 micron and it's squareness to the end faces and height variation to the 'V Block in a pair is within ± 3 micronIn Built Features: V Blocks are Hardened & Ground to 55 HRC ± 2 HRC. The top V and bottom V are parallel within ± 3 micron and its squareness to the end faces and height variations to the V Block in a pair is within ± 3 micron. Supplied with Clamp for holding job. Hold square and Round work.

Read more less

Crystal brand Permanent Magnetic Racks are useful in tool room, workshops, paint shop, machine shops, assembly, garages, to keep the hand tools such as spanners, screw drivers, calipers, files, cutting tools, etc. In a systematic manner. It helps the user for easy handling & storage. They are available in different lengths. Magnetic Racks are totally protected from rust and corrosion.These racks can be easily mounted.“Crystal” magnetic racks make the best possible use of permanent magnet material in the solution of many lifting and holding problems, as all available magnetic flux from a small number of magnets is concentrated in the two mild steel pole pieces.Details: Sr. No. Cat No. DimensionsL XH X W 1. AA-3161 150 X 25 X 30 mm 2. AA-3162 225 X 25 X 30 mm

Read more less

Pot Magnets: “CRYSTAL” Pot Magnets are compact units embodying powerful “Alnico” magnets assembled in mild steel pot by aluminum retaining and insulating rings designed for magnetic holding and lifting applications of all sorts. They can be readily inserted into other assemblies and the mild steel pot be easily machined to suit individual requirements. Available in Neodymium Pot Magnet, Hook Magnet, Shallow Pot Magnet, Deep Pot Magnet, Countersunk Magnet and in four sizes. Supplied complete with plated keeper. Special sizes can also be manufactured. Specifications: Sr. No. Cat. No. Diameter(OD) Height(H) Threading Depth of Threading(D) Magnetic Pullkg 1 AA-1921 18 mm 16 mm M 5 5-6mm 1.8 2 AA-1922 22 mm 20 mm M 6 5-6mm 2.8 3 AA-1923 27 mm 25 mm M 6 5-6mm 6.5

Read more less

Features: "CRYSTAL" magnetic sticks are very useful for removing steel particles from blind holes and useful for assembly & maintenance work for removing steel parts lying in oil tanks. "CRYSTAL" magnetic sticks are compact unit embodying powerful 'Alnico' Magnets assembled in stainless steel pots which are designed for lifting applications. Length can be increased by joining extension. Extra lengths are available on request. Specification: Sr. No. Cat. No. Diameter Length mm 1 AA-2229 3 mm 150 2 AA-2220 5 mm 150 3 AA-2221 6 mm 150 4 AA-2222 8 mm 150 5 AA-2223 10 mm 150 6 AA-2224 12 mm 150 7 AA-2225 14 mm 150 8 AA-2226 15 mm 150 9 AA-2227 16 mm 150

Read more less

Features: For high accuracy light Machining, Grinding, Inspection or marking out of precision components. Vice can be used, standing on its base, sides, end or top. Guaranteed 0.005/100mm for parallelism, Flatness & Squareness with the vice in any position. Manufactured from high grade oil hardening steel, hardened & tempered to ensure stability & accuracy throughout the unit’s working life. Specification: Sr.No. Cat No. Overall Size ( LXWXH ) Jaw Opening (Q) Height oflaw(M) 1. AA-4801 150X48X60 mm 0-75 mm 30 mm 2. AA-4802 180X63X70 mm 0-90 mm 35 mm 3. AA-4803 200X73X80 mm 0-100 mm 40 mm

Read more less

Features: Used for precision measurement, setting of angles, right angle grinding and light machining. Made from high quality alloy steel. Accuracy for squareness, Flatness, & Parallelism is without 0.005mm. Angular accuracy within ±5 seconds. Center distance between rollers is within ±0.005mm. Specification: Sr. no. Cat. No. Size (mm) LxWxH) Opening 'Q' (mm) C.D(mm) Centre Distance 1 AA-6131 150x48x88 0-75 125 2 AA-6132 180x63x98 0-90 150 3 AA-6133 200x73x108 0-100 175

Read more less

We are highly engaged in offering AA-481 Hardened & Ground Precision Grinding Vice With Screw to our prestigious clients.Features: For high accuracy light Machining, Grinding, Inspection or marking out of precision components. Vice can be used, standing on its base, sides, end or top. The smooth operation is gained because clamping and releasing is through a threaded spindle with precision cut square threads. Guaranteed 0.005/100mm for parallelism, Flatness & Squareness with the vice in any position. Manufactured from high grade oil hardening steel, as vice spindle moves in a specially designed gun metal bush ensures long life working and reduces wear. Details: Sr. no. Cat No. Size (mm) LXWXH Jaw Opening (Q) Height of Jaw(M) 1. AA-4811 150X48X60 mm 0-75 mm 30 mm 2. AA-4812 180X63X70 mm 0-90 mm 40 mm 3. AA-4813 200X73X80 mm 0-100 mm 45 mm 4. AA-4814 235X96X96 mm 0-125 mm 56 mm
